If you’re concerned about any specific keyboard aspect, such as electronics, weight, or battery life, you’re in the right place.
Dygma Defy Tech Specs
- Switches: 62x mechanical switches and 8x low-profile mechanical switches.
- Hot-swap sockets: 62x hot-swap sockets for Mx switches and 8x Kailh hot-swap sockets for Choc switches.
- LEDs: 70 individually addressable RGBW LEDs on the keycaps and 110 on the underglow.
- Rollover: NKRO. No matter how many keys you want to smash at once, any keypress will be recorded.
- Keycaps: High-end laser-etched Cherry profile keycaps.
- Connectivity: USB, Bluetooth and Low-latency RF for wireless keyboards.
- Compatibility: Windows, macOS, Linux, iOS & Android.
- Key plate: Anodized aluminum.
- Microcontrollers: 2x RP2040 (1 on each keycanner), 2x Nordic nRF52820 (1 on each side) and 1 Nordic nRF52833 (on the neuron)
- Dimensions: 164.16mm x 210.02mm x 35.36mm for each side.
- Weight: 1kg approx.
Dygma Raise 2 Tech Specs
- Switches: 64 (ANSI version) / 65 (ISO version) mechanical switches and 4x low-profile mechanical switches.
- Hot-swap sockets: 64 (ANSI version) / 65 (ISO Version) hot-swap sockets for Mx switches, and 4x Kailh hot-swap sockets for Choc switches.
- LEDs:68 (ANSI version) / 69 (ISO version) Customizable RGB LEDs on the keycaps and over 100 LEDs for the underglow.
- Rollover: NKRO. No matter how many keys you want to smash at once, any keypress will be recorded.
- Keycaps: PBT double-shot keycaps for English US and UK, and high-end laser-etched OEM profile keycaps for dash and non-English languages.
- Connectivity: USB, Bluetooth and Low-latency RF for wireless keyboards.
- Compatibility: Windows, macOS, Linux, iOS & Android.
- Key plate: Brushed anodized aluminum.
- Microcontrollers: 2x RP2040 (1 on each keyscanner), 2x Nordic nRF52820 (1 on each side) and 1 Nordic nRF52833 (on the neuron)

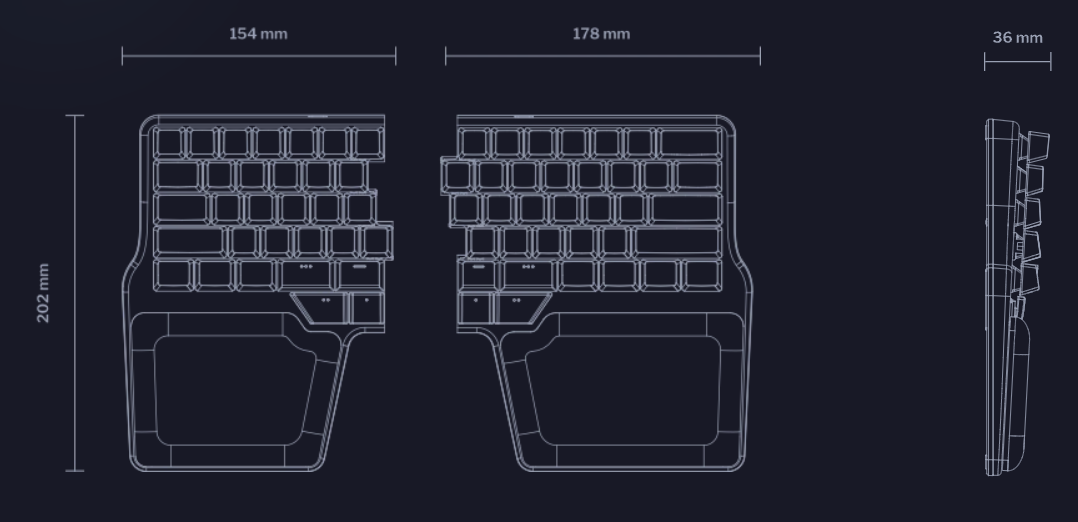

- Dimensions: 332 mm x 202 mm x 36 mm.
- Weight: 1kg approx.
Expected Battery Life
Each side of the keyboard has a 2370 mAh battery, for a total of 4740 mAh. With the current firmware, the Defy lasts up to 20 hours with full LED brightness. With brightness at 30% and true sleep active, you can expect 4-5 days, and without LEDs, a bit over that.
However, we are working to vastly improve that with future firmware updates. You can also configure different brightness settings for the LED lights to adjust battery consumption.

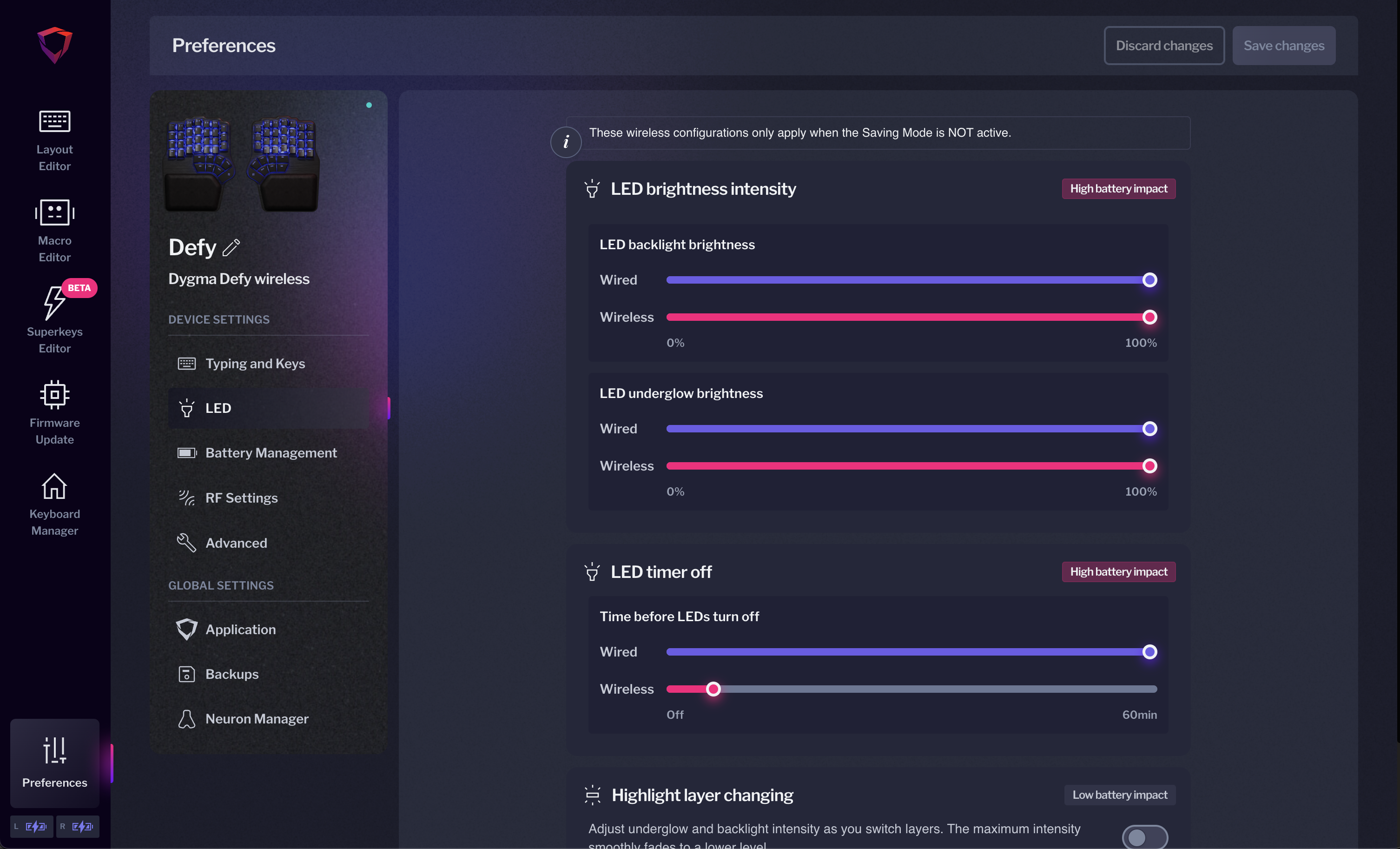

To do so, open Bazecor, go to Preferences, and then select LED. There, you can find different LED light settings you can play with to prolong your battery life.
