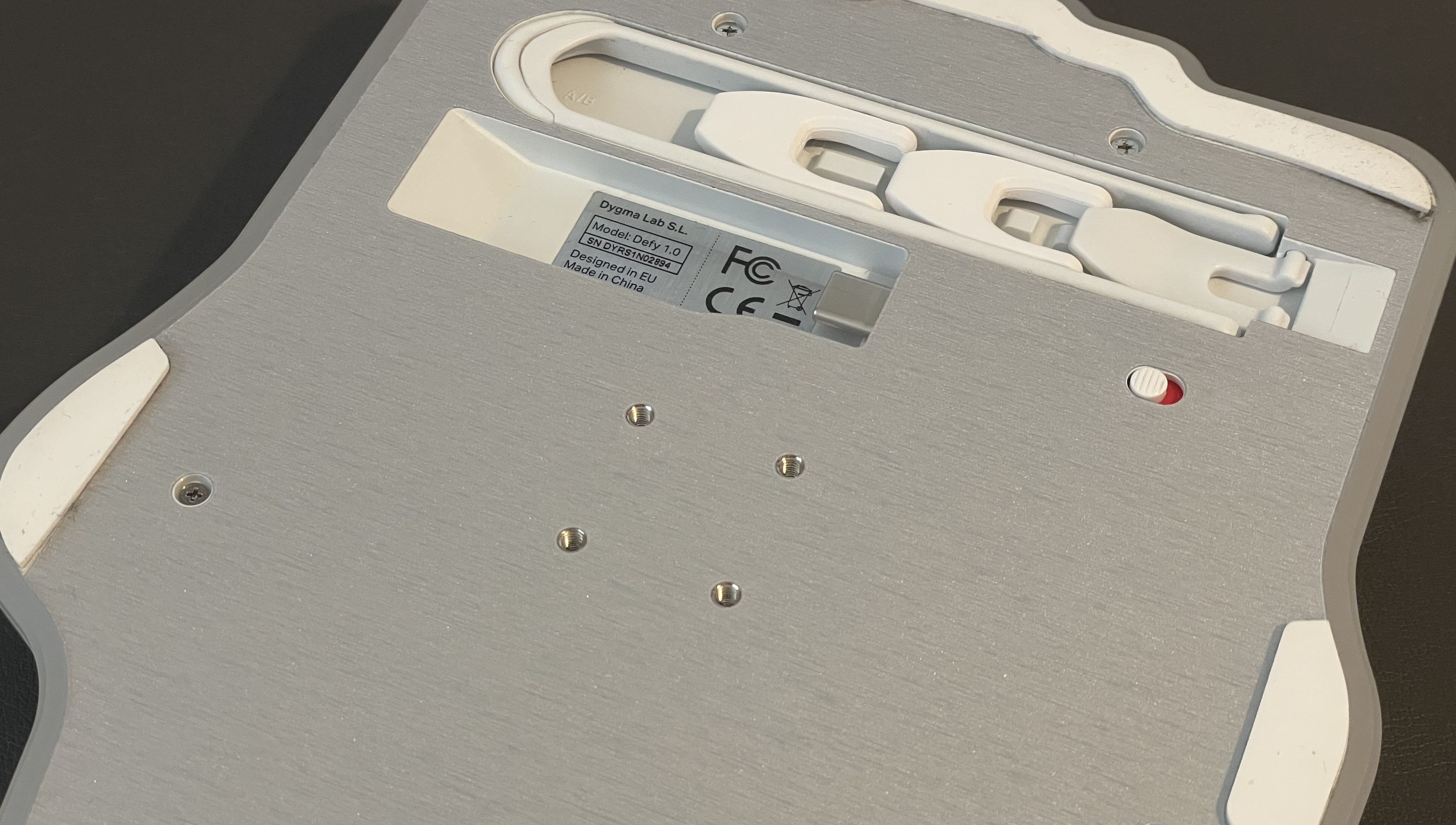

The Dygma Defy and the Dygma Raise 2 have 4 M3 screw holes, 19.5 mm apart, on the back of each side to allow different attachments to be screwed onto the keyboard, such as the articulated arms above.
Tripod attachments

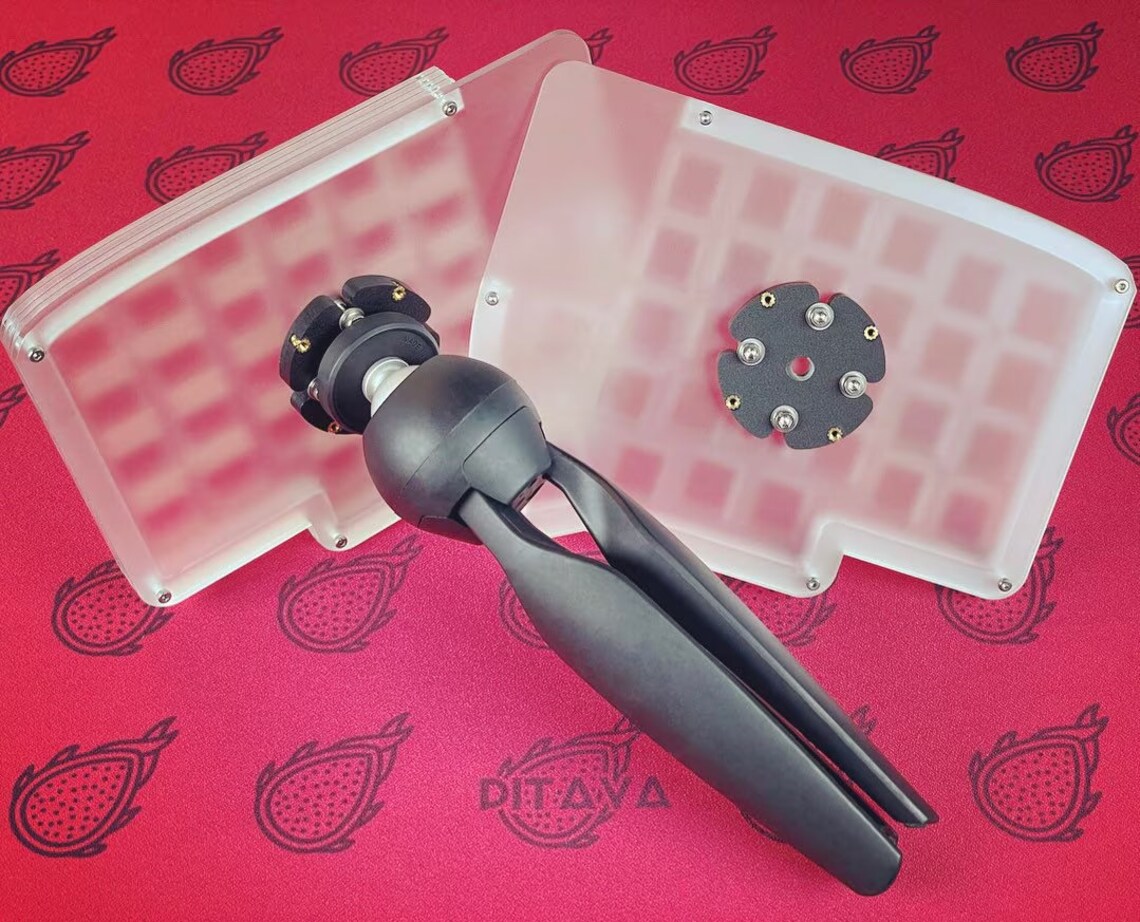

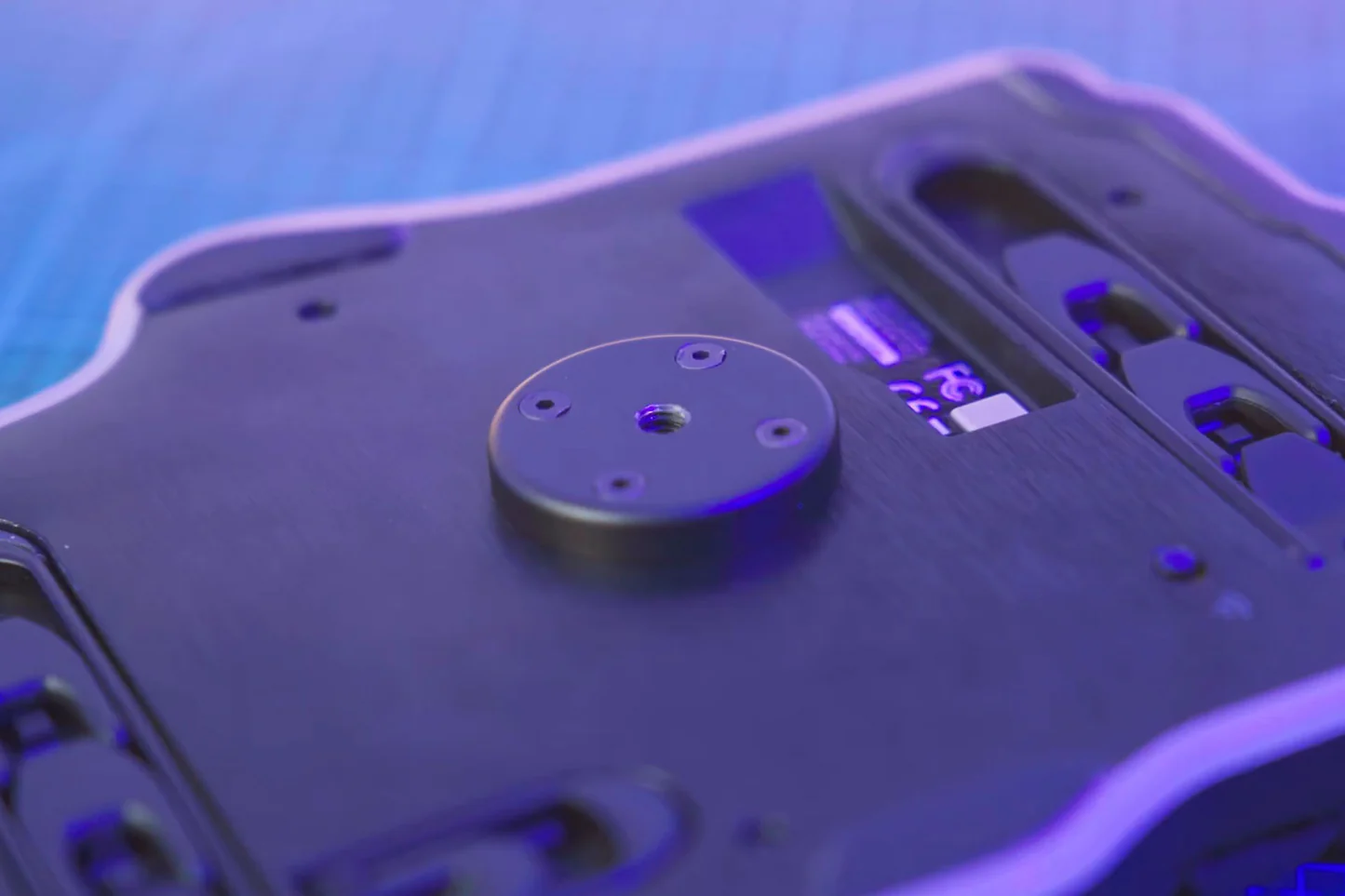

These screws are compatible with our tripod adaptor puck, which lets you attach your keyboard to the standard 1/4" screw present on tripod heads and camera arms.

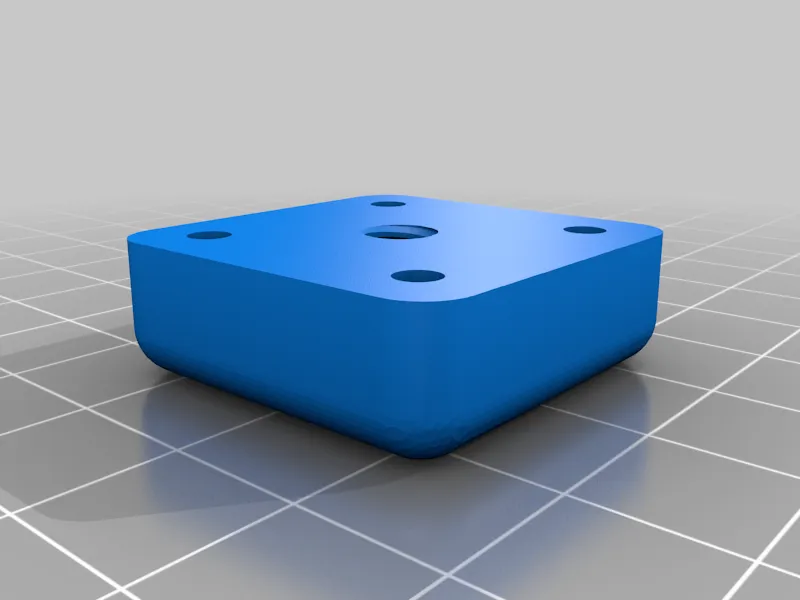

Our adaptor pucks are made of CNC aluminum, but you can also 3D print them yourself, thanks to this design by /prof_doofenshmirtz.

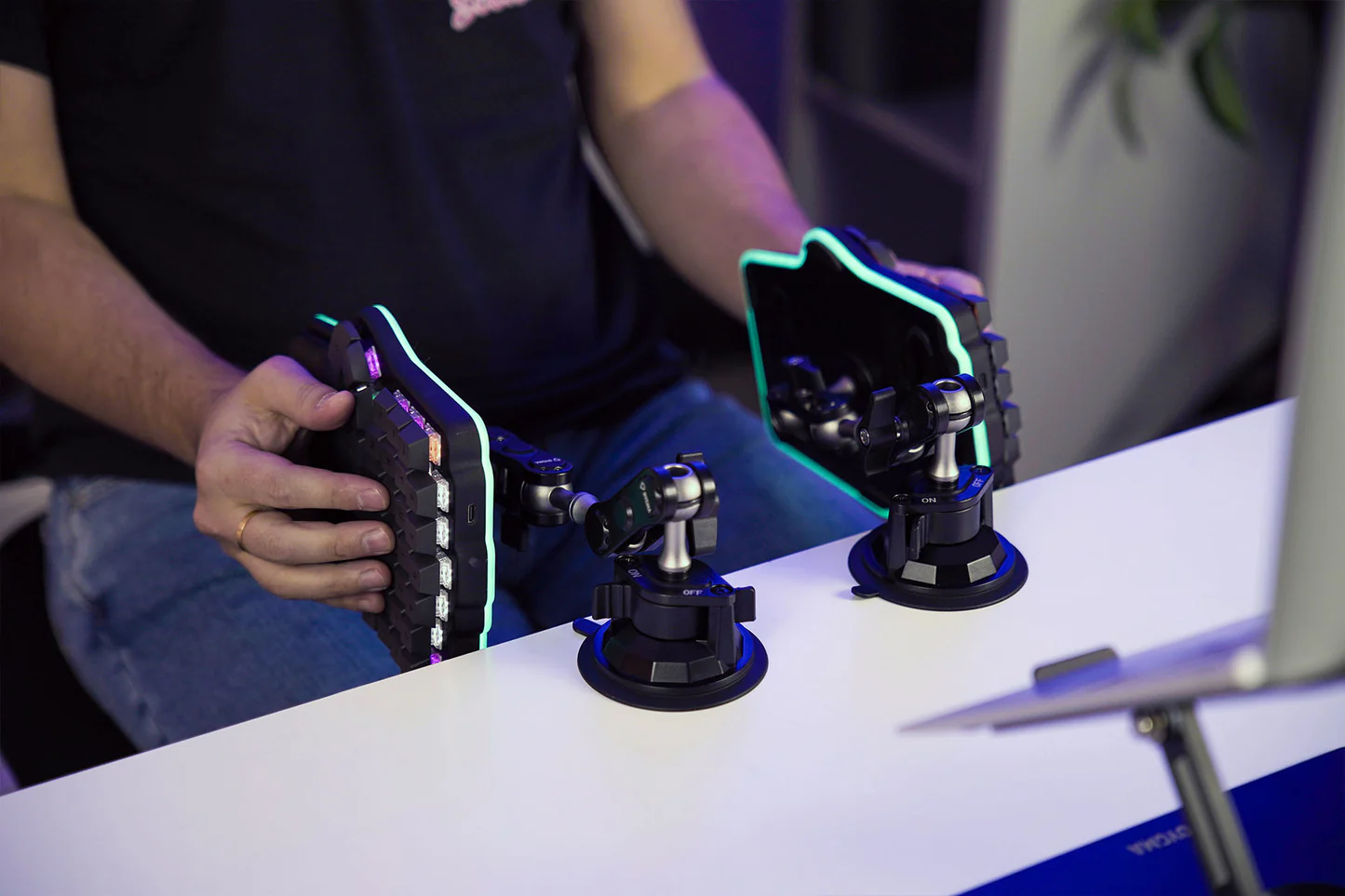

These adaptor pucks match perfectly with our articulated arms, which allow you to adjust your keyboard freely thanks to their 360º toric joints.
In fact, you can order them together to save 20%.
Here's a video explaining how we arrived at this solution and its benefits:
Custom Tenting Solutions

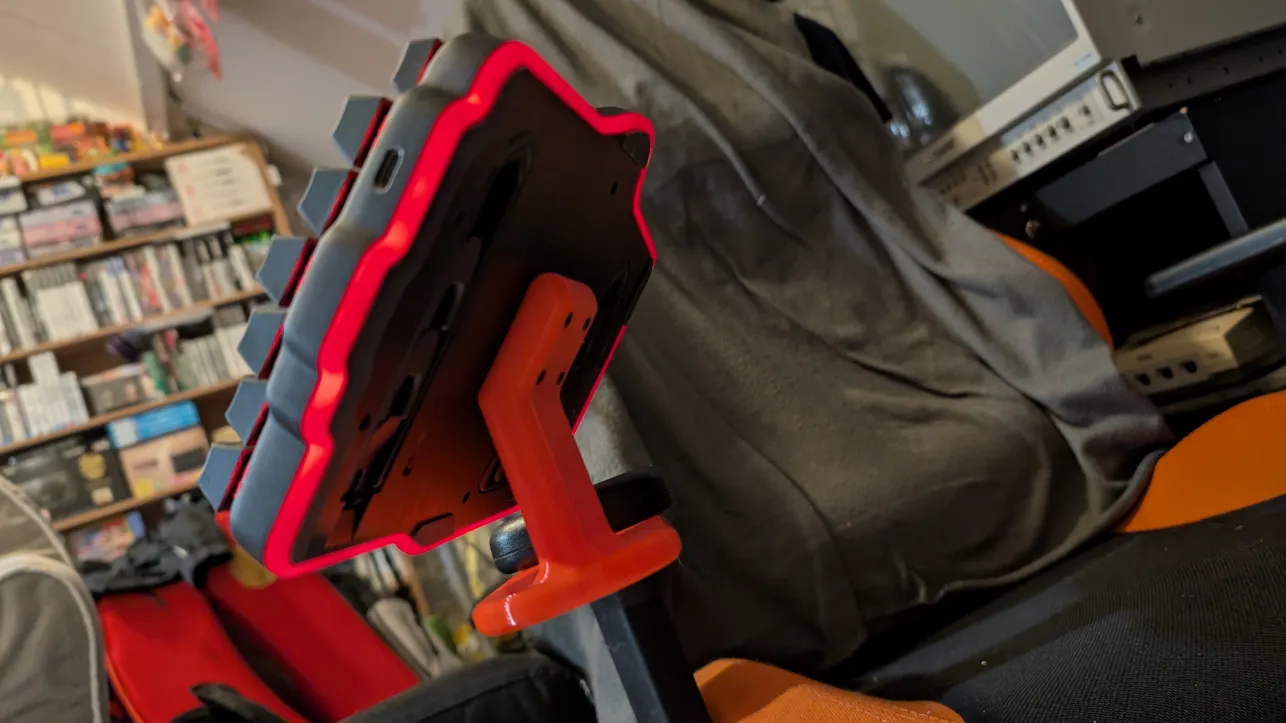

Some community members have designed really cool attachments, like this one that attaches the keyboard to the arms of a chair from Xyphoid Process.

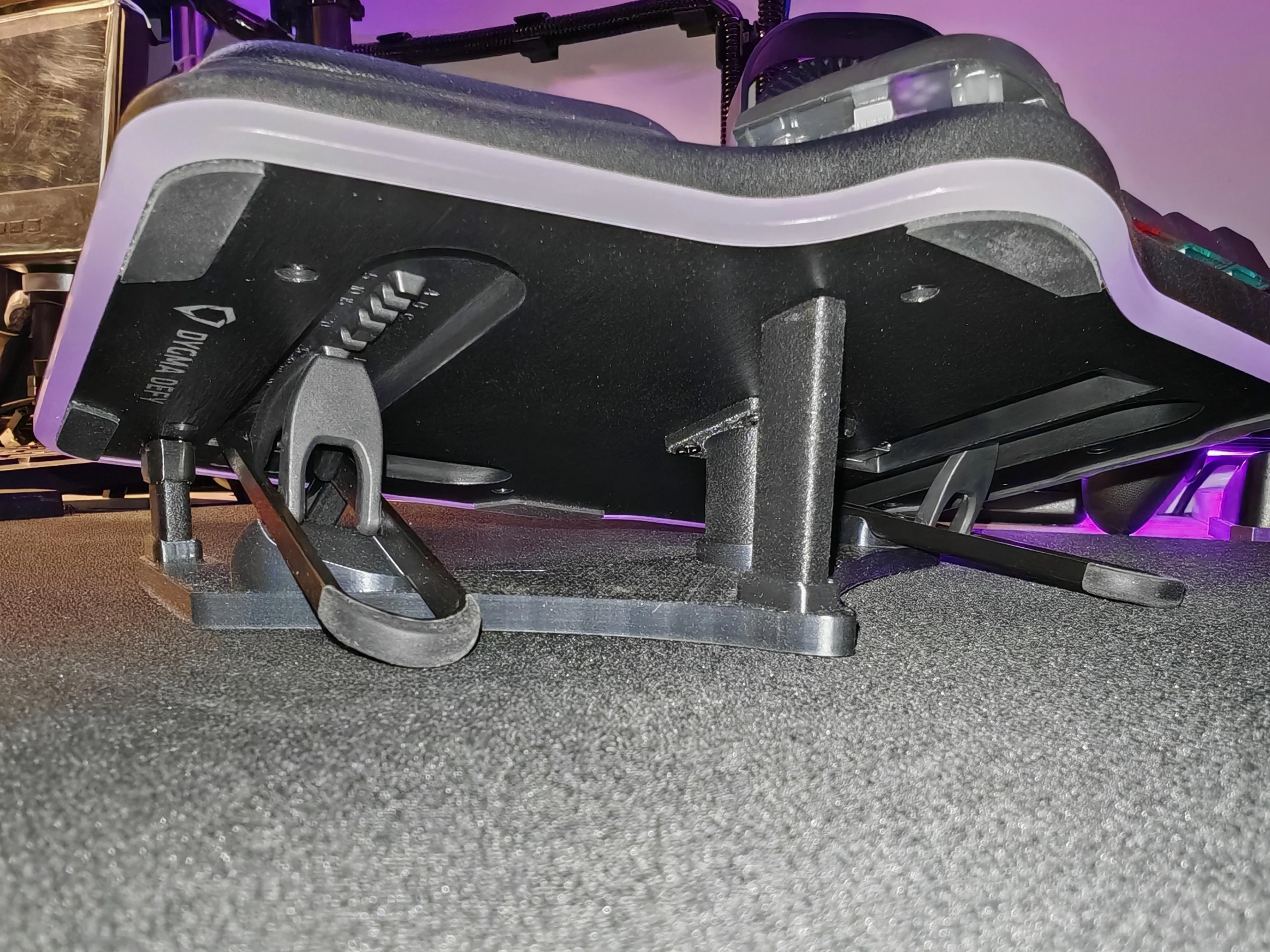

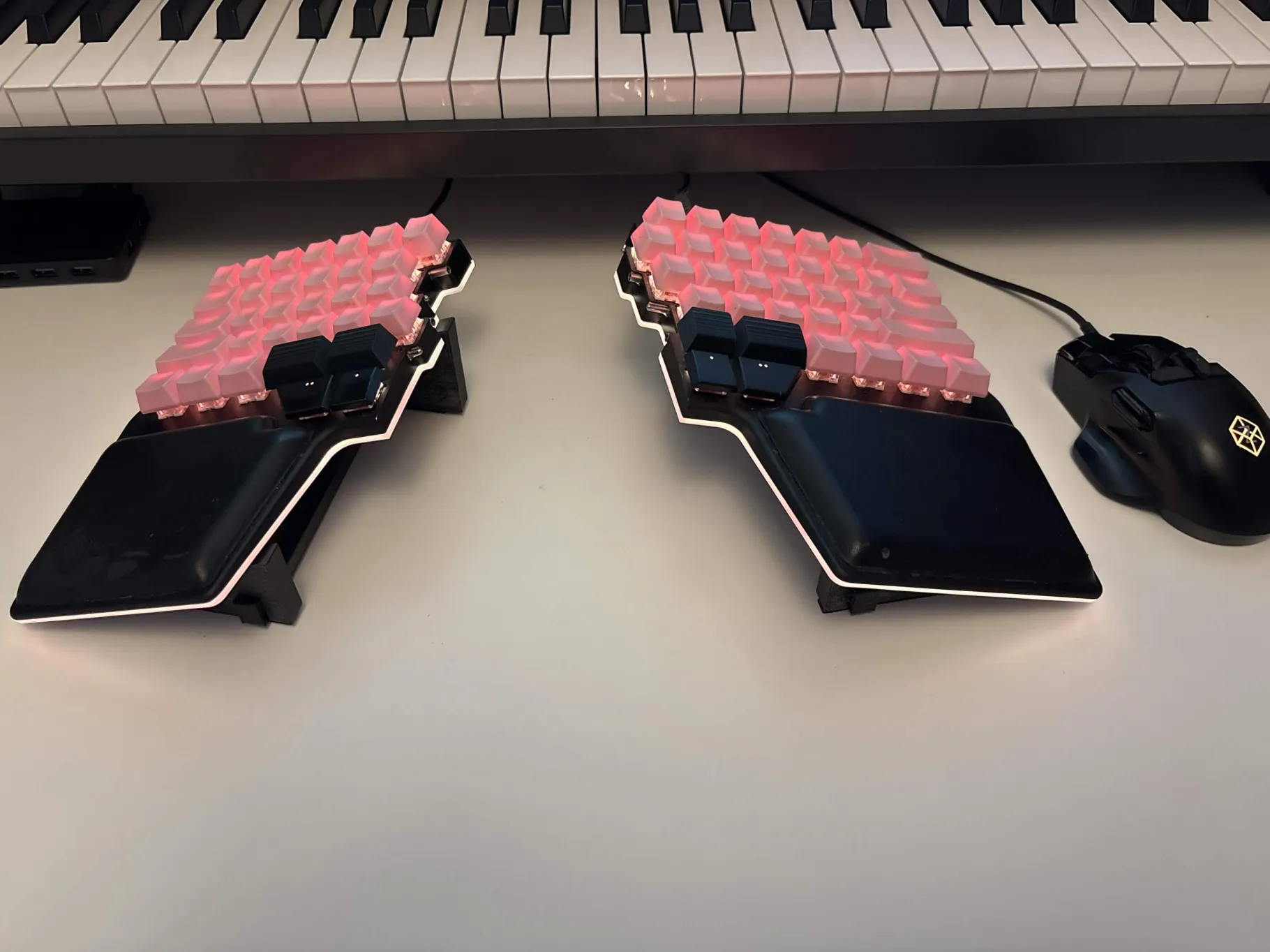

Or this custom structure to achieve the reverse tilting + tenting from /mic4ch.

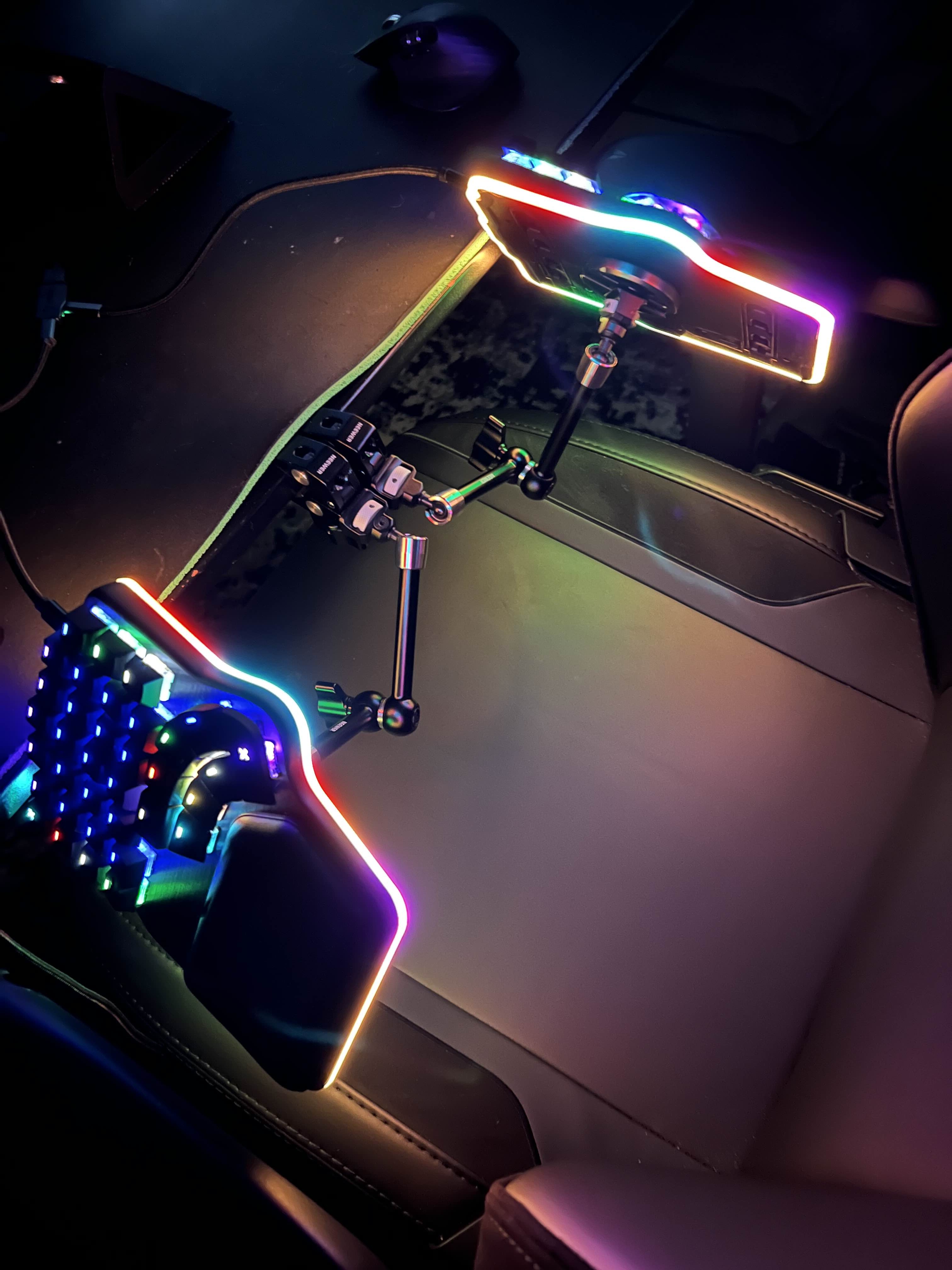

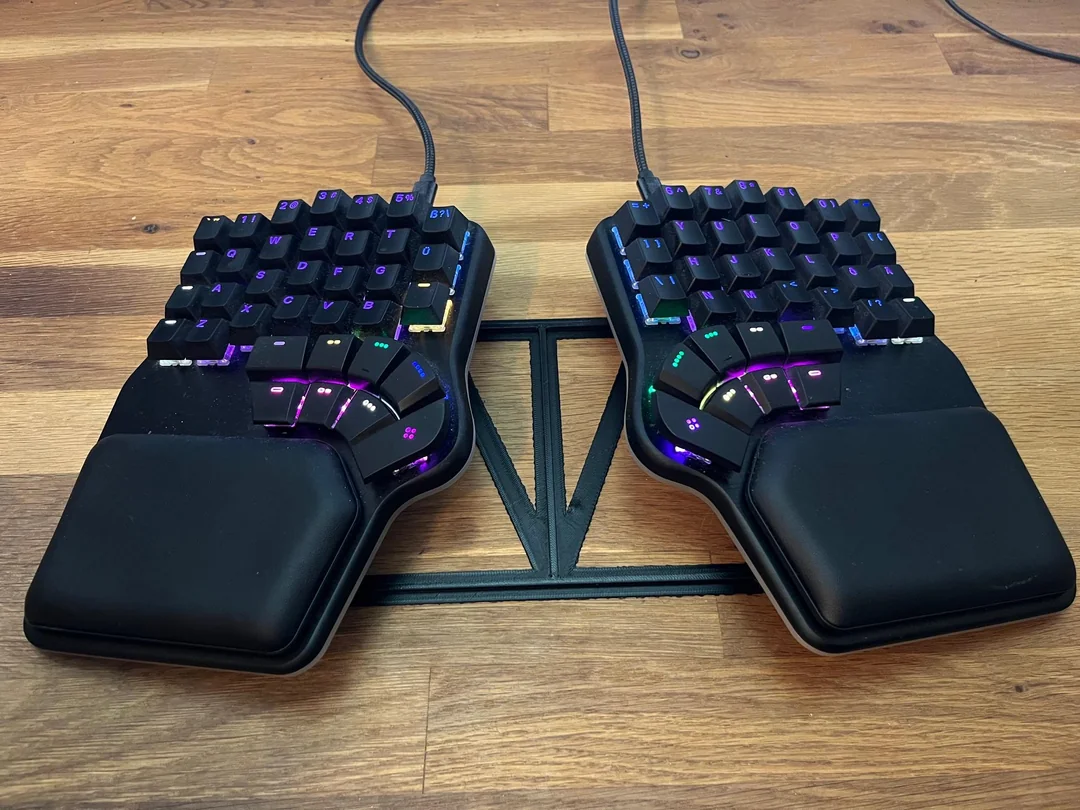

And u/Tucano42 has developed an attachment so both sides are kept at the same distance.
Keyboard cowboy holsters

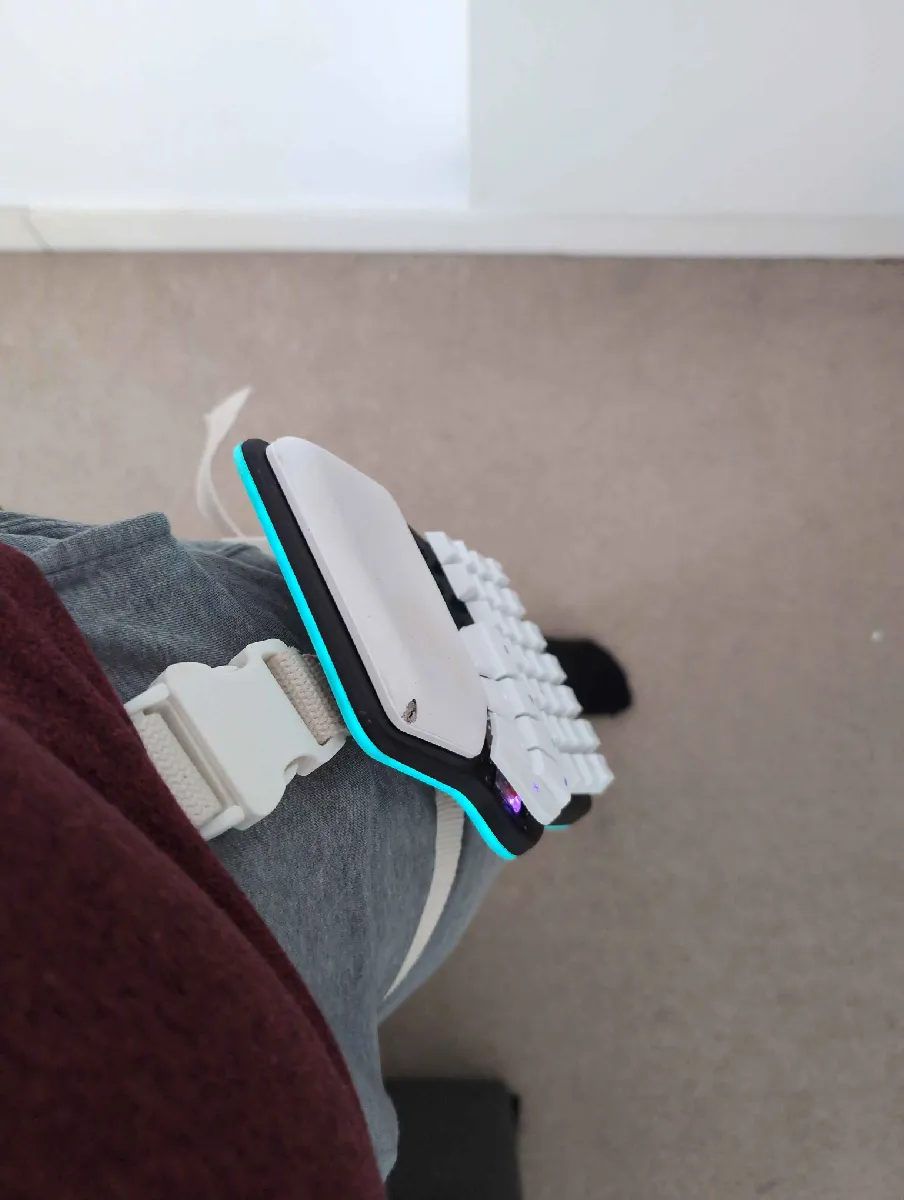

With this attachment from Litelotus, you can carry your keyboard and attach it to your legs.
We've also designed our holster to carry the keyboard like a cowboy 🤠
If you'd like to 3D print your holster, at the bottom of this article are the 3D files attached. You'll also need 8 M3 15-20mm metal screws.
Design your own
You can also design your own attachments. To make that easier, here are to-scale drawings of our keyboards:
